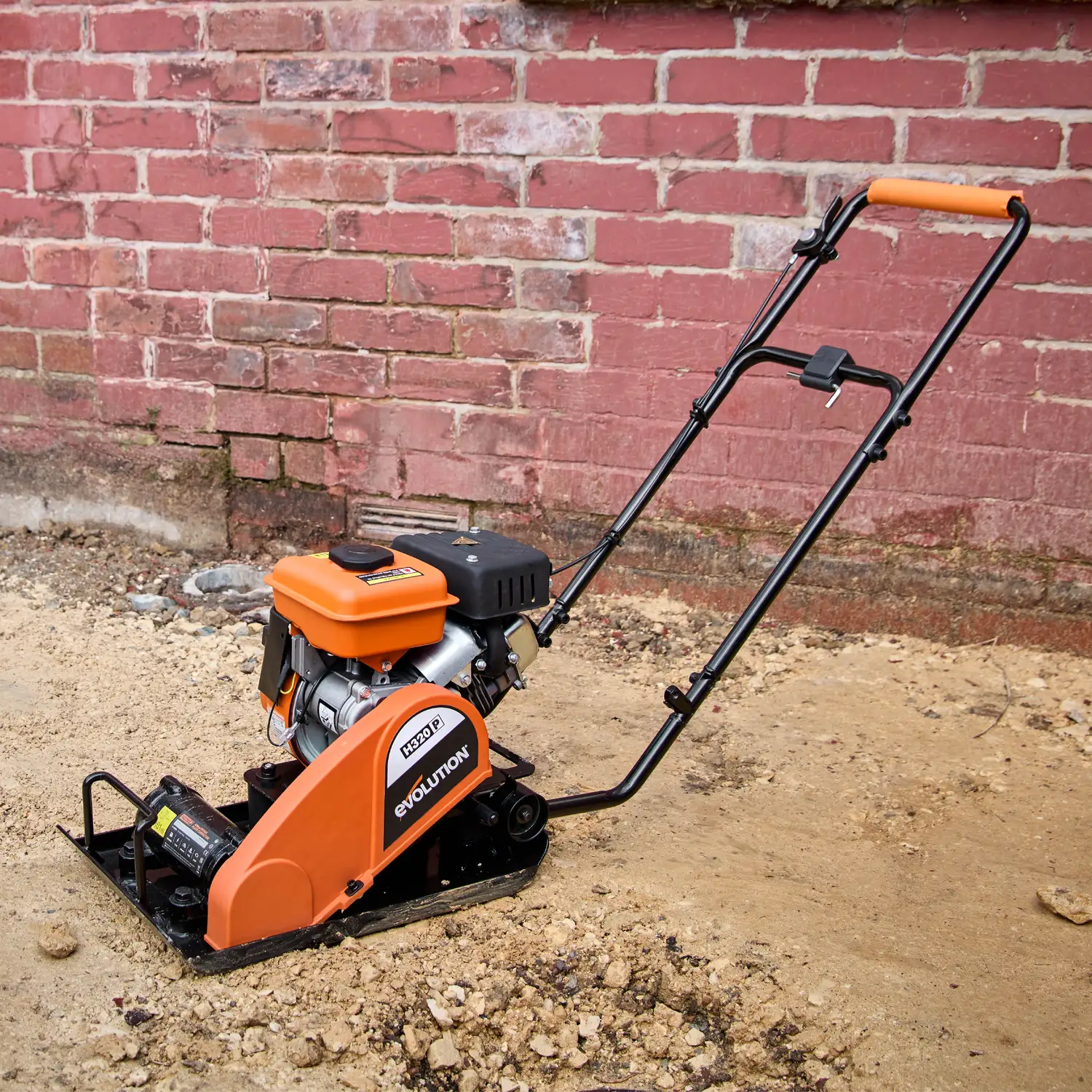

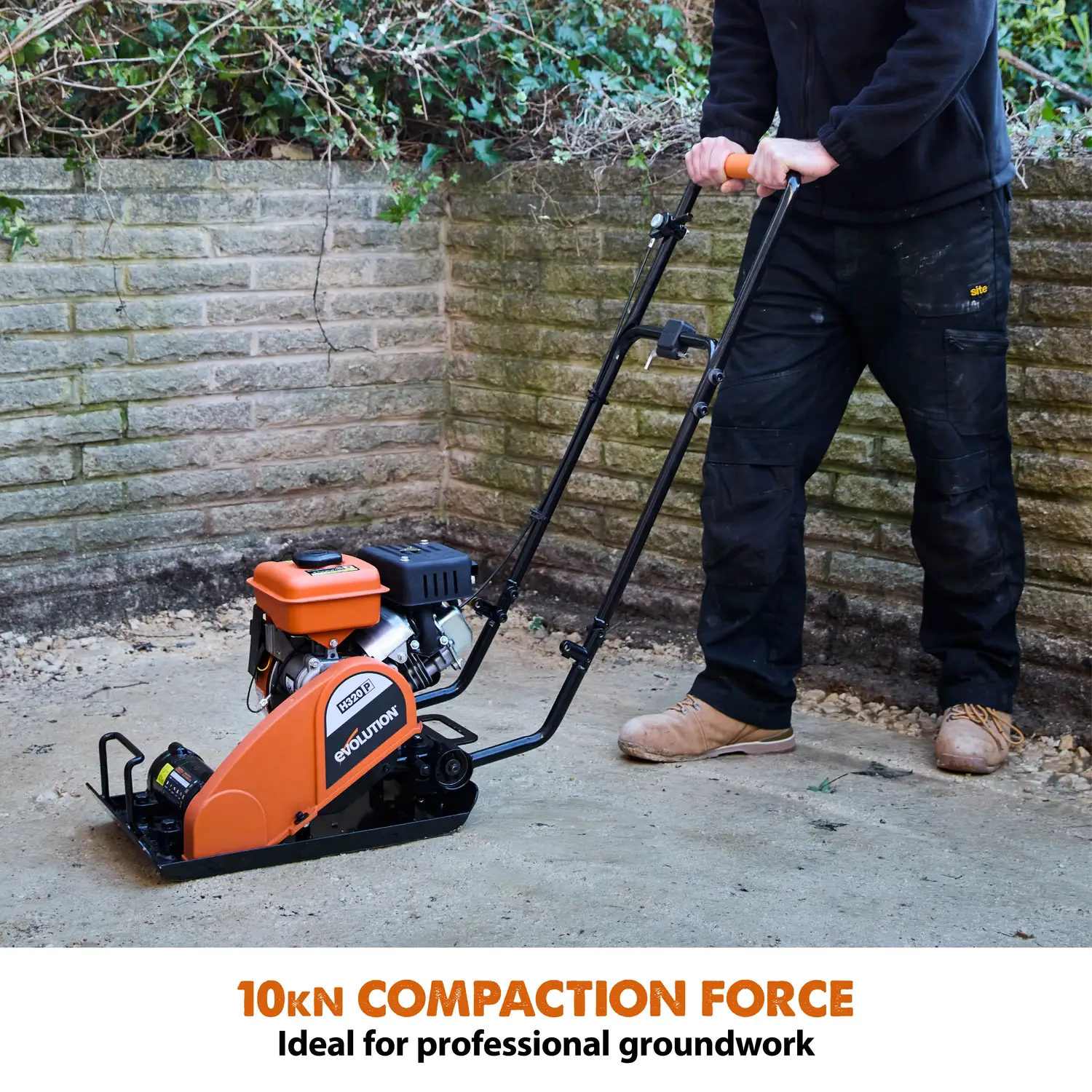

The Evolution Hulk Gas-Powered Concrete Compactor is an efficient plate compactor for trade and DIY use in medium- to large-scale landscape and groundwork projects. Smaller and up to 44 lbs. lighter than the competition, this Hulk Gas-powered Compactor uses less fuel and produces fewer fumes, but it still offers a huge compaction force of 2248 lbs. and punches well above its weight! This compactor offers a realistic alternative to hiring due to its incredible value and operates at a low frequency (just 90 Hz) and high amplitude for better soil compaction. The thick, durable base plate delivers high centrifugal force for powerful performance with an 8m/min. travel speed and can be used on block paving with the optional paving pad. This unit features an easy pull-start 80cc 4-stroke gas-powered engine, a 0.4-gallon fuel tank and a forced-air cooling system.

• Ideal For: Crusher Run, Sand, Soil, Small Aggregates, Patio & Block Paving, Driveways & Tarmac Repair with Excellent Surface Preparation.
• The Gas-powered Compactor is the ideal compactor for the construction and landscaping industries, offering a very realistic alternative to hiring due to its incredible value and operates at a low frequency (at just 90Hz) and high amplitude for better soil compaction.
• Ideal for surface preparation when evenly compacted ground is required and suitable for sub-base preparation, sand, gravel, crusher run, soil, small aggregates, patios, block paving, driveways, pathways, and tarmac repairs
• The Gas-powered Compactor also has an easy-fold hinged handle for improved storage and transportation.
• The thick, durable base plate delivers high centrifugal force for powerful performance with an 8m/min travel speed and can be used on block paving with the optional paving pad.
• Features include an easy pull-start 80cc 4-stroke gas-powered engine, a .4 Gallon fuel tank, and a forced-air cooling system.


Specifications

Engine Type	79 cc Single cylinder 4 stroke OHV
Engine Power (HP)	2.4hp @ 3600 rpm
Spark Plug Replacement	LD E6TC (available from Evolution) NGK BP6HS CHAMPION L87YCC AC DELCO 42FS
Spark Plug Gap	0.028 – 0.031 In
Air Filter Replacement	Evolution H1S58
Valve Clearances (cold)	Inlet 0.15 mm 0.006 inches Exhaust 0.20 mm 0.008 inches
Compaction Force	2,248 lbs
Recommended Maximum Operator Usage Time	20 Minutes
Oil Type	SAE 10W-30/40
Oil Capacity	0.25 L
Fuel Type	Standard Unleaded Petrol
Fuel Capacity	8.45 fl oz
Foot print	12-1/2 In
Handle Height (during operations extension handle fitted)	40 In
Machine Reach (during operations extension handle fitted)	51 In
Product Weight:	71.5 lbs
Packaged Weight:	88 lbs
Sound Pressure Level LPA:	101dB(A)
Sound Power Level LWA:	105dB(A)
Vibration (m/sec2)	51.84ft/sec2
Base	Pressed Steel
Warranty	3 Years

Items Supplied

Instruction Manual

Handle Extension

Handle Extension attachment thumb screws

Spark Plug Box Spanner

Engine Oil (500 ml bottle)
