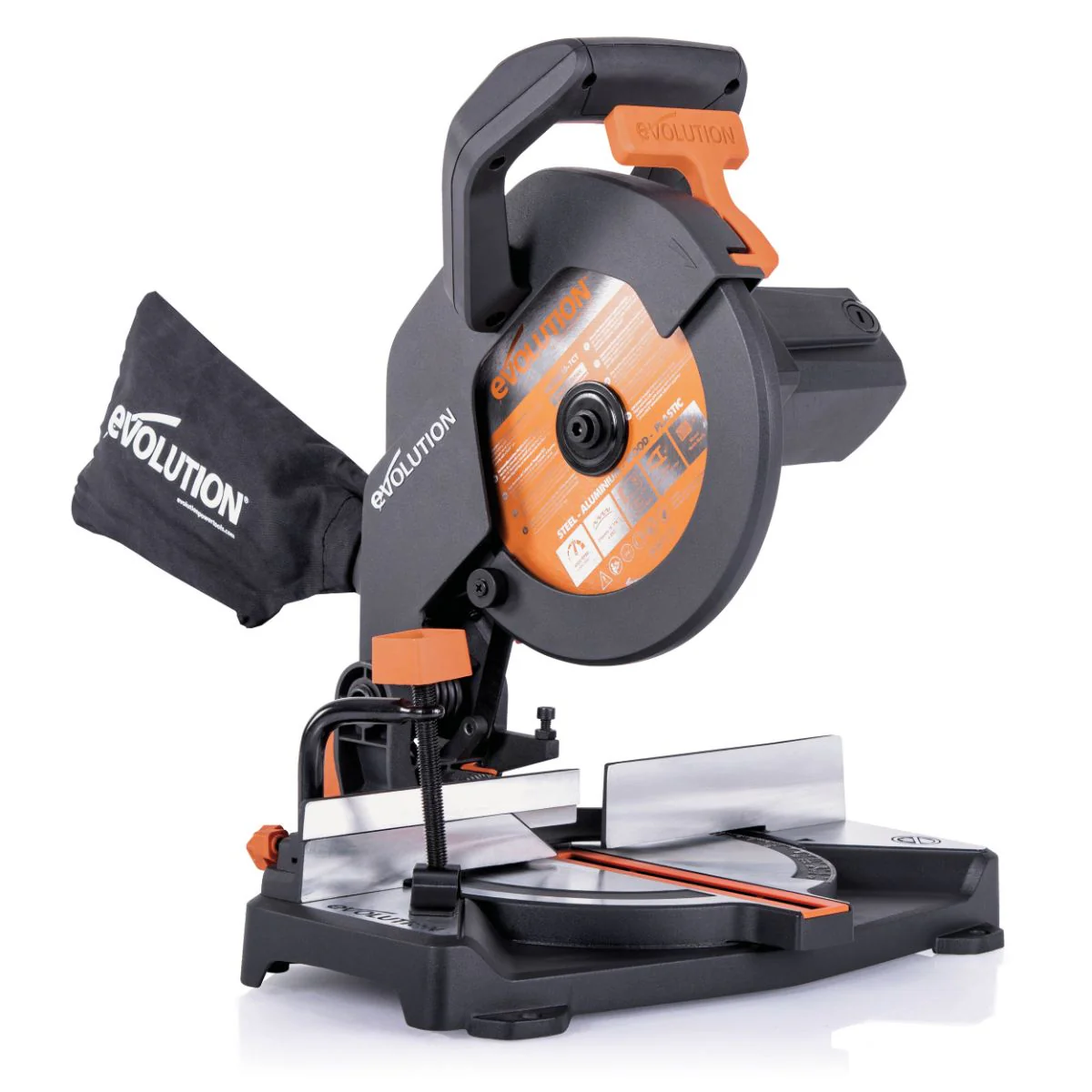

Evolution R210CMS: Compound Miter Saw With 8-1/4 in. Multi-Material Cutting Blade
The compact and portable Evolution R210CMS comes loaded with a Premium Japanese Tungsten Carbide-Tipped (TCT) Multi-Material blade and a powerful, high-torque motor and gearbox. This combination produces burr-free cuts through mild steel, lasts up to 14 x longer*, and cuts 4 x times faster than abrasive discs!

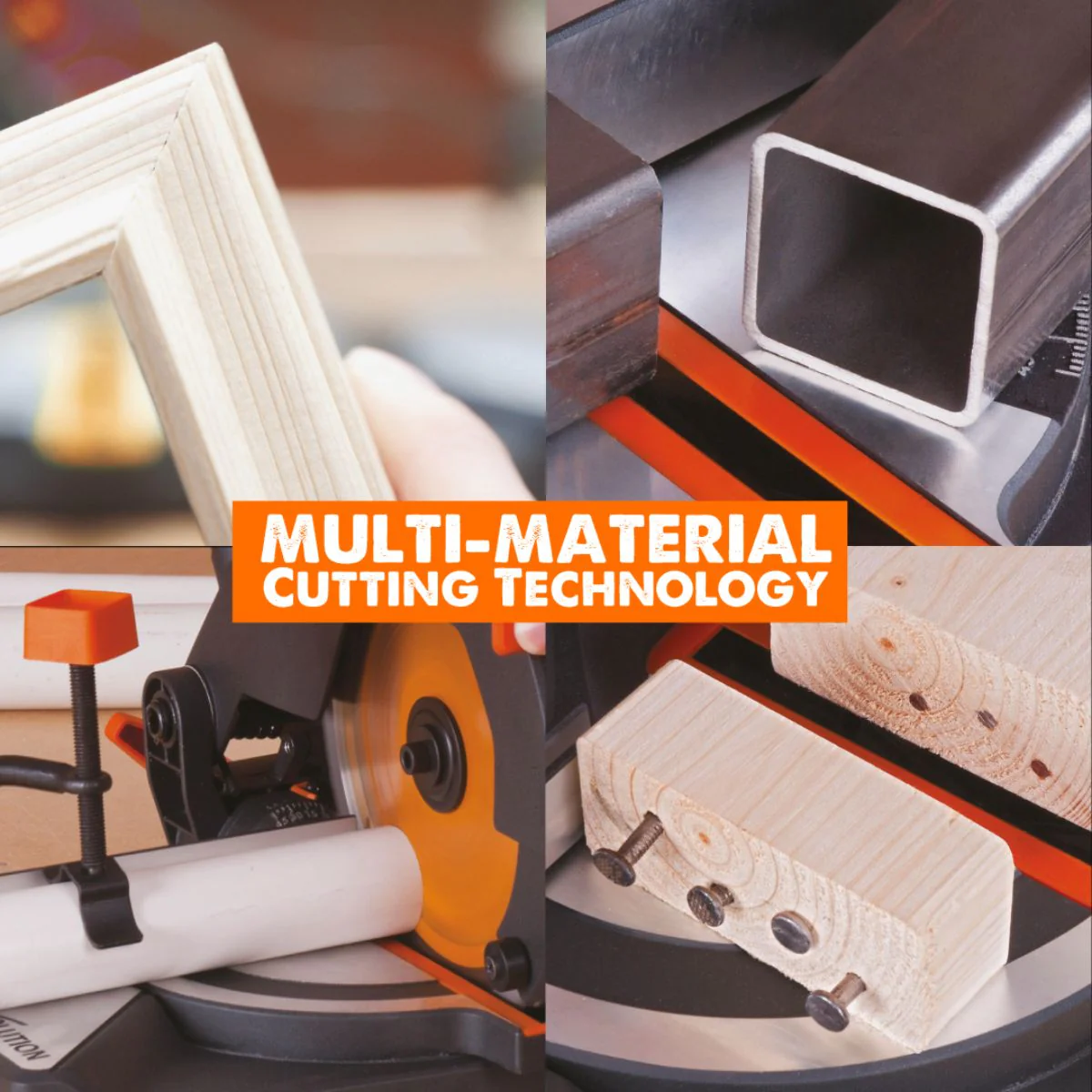

The 8 ¼" Compound Miter Saw with Multi-Material Cutting Capability can cut virtually any common construction material including: Hard & Soft Wood, Reclaimed wood with hidden nails, Mild Steel, Aluminum, Copper, PVC, Composite Decking & more! * Based on internal testing data cutting 2” angle iron. Evolution 14” Multi-Material blades averaged 1000 cuts per blade. 14” abrasive discs averaged 69 cuts per blade.
- 8-1/4” Premium Japanese Tungsten Carbide Tip Blade
- Miter detents at 0, 15, 22.5, 30 and 45 degrees
- Accurate miter table with 9 positive stops for fast angel finding.
- Bevel capacity range from 0-45
- Strong cast aluminum base with bench mounting holes.
- Head lock-down pin for safe and compact storage.
- Ergonomic horizontal handle and trigger provides comfort over long periods of use.

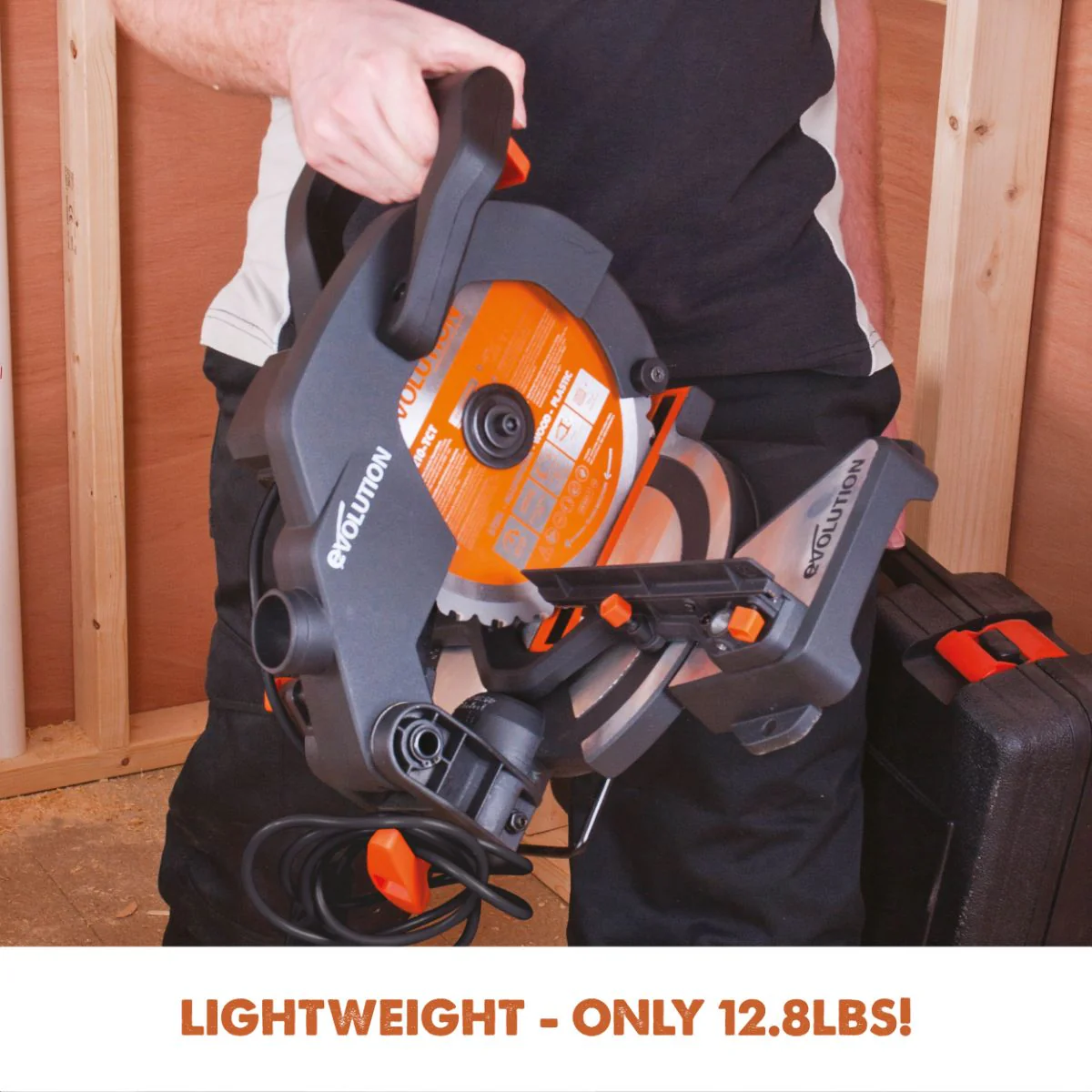

- Lightweight and portable. Small footprint provides easy storage.

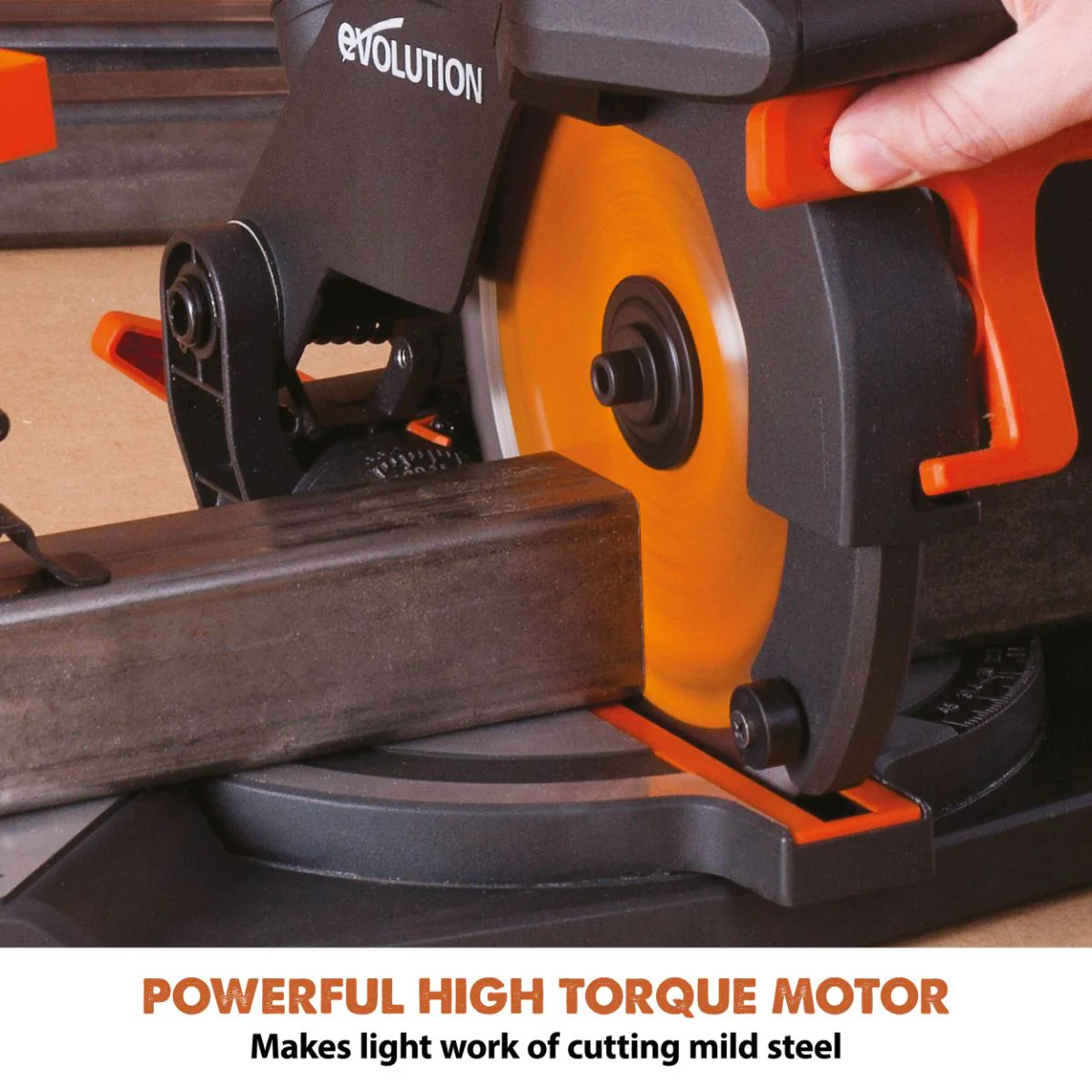

- Powerful high torque motor with optimized low RPM cuts through steel. Results in cool, smooth, burr-free cuts.
Cutting Capacity
| Max. Cross Cut (0° x 0°): | 4-15/16 In. x 2-3/16 In. (125mm x 55mm) |
| Max. Bevel Cut (0° x 45°): | 3-3/8 In. x 2-3/16 In. (85mm x 55mm) |
| Max. Miter Cut (45° x 0°): | 4-15/16 In. x 1-3/8 In. (125mm x 35mm) |
| Max. Compound Cut (45° x 45°): | 3-3/8 In. x 1-3/8 In. (85mm x 35mm) |
| Mild Steel Plate (Max. Thickness): | 1/4 In. (6mm) |
| Mild Steel Box Section (Max. Wall Thickness): | 1/8 In. (4mm) |
Specifications
| Motor (120V): | 10A |
| Speed No Load: | 3750 RPM |
| Max. Miter: | 45°L - 45°R |
| Max. Bevel (Left): | 45° |
| Blade Guard: | Cast Aluminum |
| Cable Length: | 6-9/16 ft (2m) |
| Dust Port Diameter: | 1-3/8 In. (35mm) |
| Blade Dia.: | 8-1/4In. (210mm) |
| No. of Teeth: | 24T |
| Bore: | 1 In. (25.4mm) |
| Kerf: | .067 In. (1.7mm) |
| Product Dimensions: | 10-15/64 x 15-15/32 x 15 In (260mm x 393mm x 381mm) |
| Packaging Dimensions: | 16.54 In. x 11.42 In. x 12.2 In (420mm x 290mm x 310mm) |
| Product Weight: | 12.8 lbs (5.8 kg) |
| Packaged Weight: | 15.8736 lbs (7.2 kg) |
Items Supplied
| 24T Multi-Material TCT Blade |
| Dust Collection Bag |
| Top Hold Down Clamp |
| Allen Key 6mm (Blade Change) |
